Hot Rolling Mills

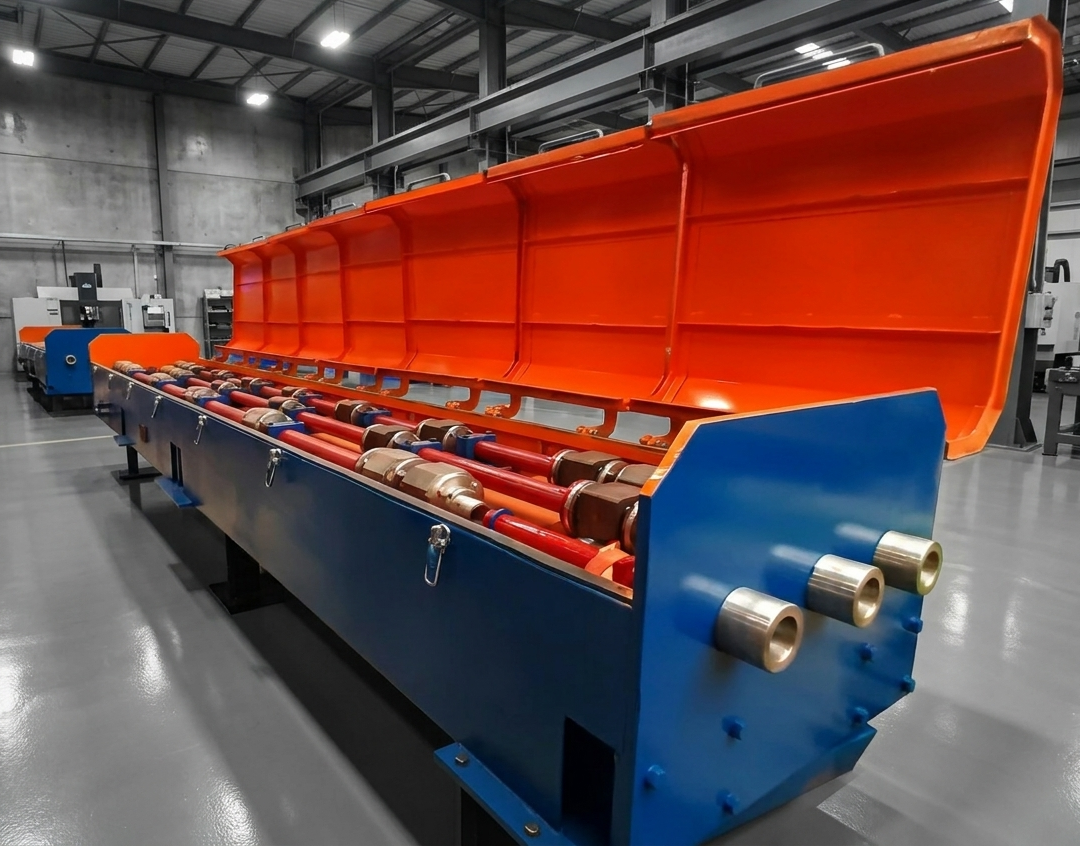

Quenching Systems
Inline thermo-mechanical quenching systems engineered for consistent TMT properties at high mill speeds.
Overview
Precision Cooling for Superior Bar Properties
Our quenching systems deliver uniform cooling for TMT rebars and wire rods, producing the required tempered martensite rim and ductile core. Modular nozzle blocks, precision flow control and PLC-tuned pressure profiles ensure repeatable mechanical properties across the full size range.
- Modular quench box design
- Self-Tempering process that ensures high Weldability
- Technical partnership with Herbert Roth of Germany
- “TEMPCORE” endorsed production process
- Quenching Process Solutions in a capacity up to 100 Tons per hour.
- TMT rebars of Fe415, Fe500, fe 550 & fe 600 Grades
Technical Specifications
Key parameters
01 · Bar Size Range
8 – 40 mm
02 · Mill Speed
up to 45 m/s
03 · Water Pressure
8 – 22 bar
04 · Flow Rate
up to 1200 m³/h
05 · Grades
Fe-500 / 550 / 600 D
06 · Control
PLC + HMI
Applications
TMT rebar productionWire rod coolingHigh-speed bar millsQuality upgrade retrofits
Discuss your project
Need a tailored quenching systems solution?
Our engineering team will work with you on capacity, layout and integration with your existing plant.
